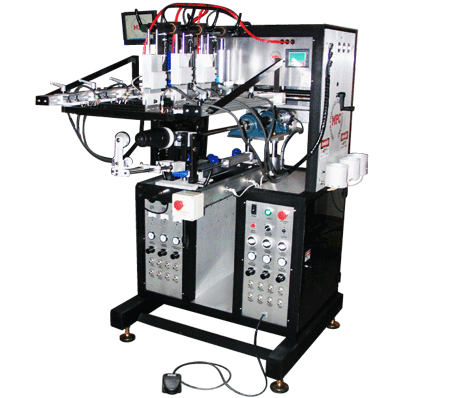

SM3T THREE COLOR, SEMI-AUTOMATIC PRINTER

The Miller Process M3T three color, semi-automatic printer is capable of 360+ three color imprints per hour. That’s over 1,000 hits/hour! It’s one incredibly versatile machine.

machine features

  • Up to 9 parts per minute
  • 3 hot melt printing stations (require thermoplastic/hot color and metal screen frames with stainless steel screen mesh)
  • Uses MPC pin registration Target Screen System
  • Capable of printing tapered items
  • Print using one, two, or three stations

MORE ABOUT THIS MACHINE

The 95B-1 single color printer has front mounted controls that are easily accessible and fully adjustable. The machine’s latest PLC control system offers a built-in hit counter and is multi-color capable (one color at a time) for handled ware. The EyeWare Camera Registration System gives this machine the ability to print multi-color on non-handled ware, as well. Auto Print mode allows the machine to cycle without having to hit the foot pedal for each cycle. Bi-directional mode allows the machine to print both directions. The tilting chuck system adjusts easily to allow the printing of tapered items.

MACHINE SPECIFICATIONS

Height: 67″
Width: 45″
Depth: 64″
Weight: 1200 lbs
Duty: Continuous
Power: 240V
Single Phase 50-60 Hz 20 Amps
Air: 90 PSIG Dry Filtered
Stroke: 18″
CPM: Up to 9
Max. Diameter: 6-1/2″
CFM Max: .9cfm.

STANDARD EQUIPMENT

Electronic Gearing
Target Screen System
Pusher Support
Integrated Hot Color Units w/ Amp Meters
18″ Stroke
2″ Pusher Pad
Three 3-1/4″ Squeegee Holders

MACHINE options

EYEWare Camera Registration
Bottle Cradle
HXX Mug Chuck
Stationary Flood Bar
Pneumatic Flood Bar
Inflater Unit (for soft plastics)
Auto Spin Unit (printing w/ a lug)
Can be converted into a 2 Color UV Printer
